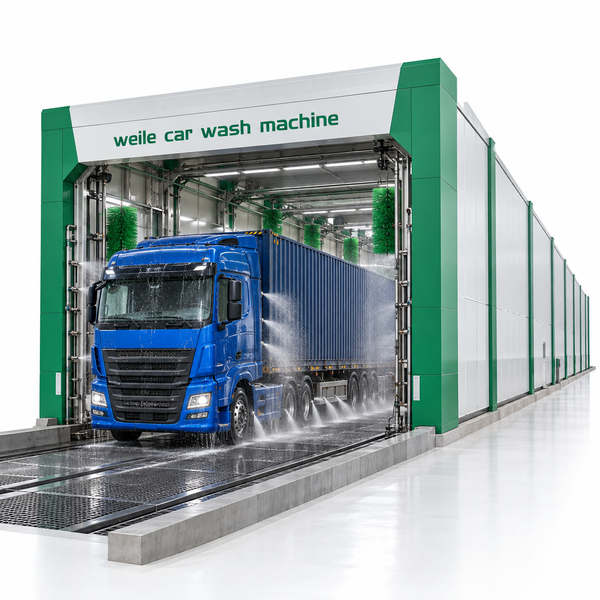

Enclosed Tunnel Wash Layouts for Fleet Vehicles
PRODUCT PARAMETERS
Description
| Weile enclosed tunnel wash defines a contained washing passage for buses and trucks. Confirm whether a conveyor moves the vehicle or the driver controls travel. Cleaning modules, transport equipment and the enclosure must be specified separately. |
| Vehicle envelope Bus/rigid truck 6–12 m; long combinations 12–18 m reviewed individually. |
| Enclosed passage baseline 10–20 m long × 5.5–7.0 m wide × 5.5–6.5 m high; long vehicles may need ≥22 m. |
| Internal vehicle clearance 3.2–3.5 m wide; 4.5–4.8 m high, before any tighter module restriction. |
| Fixed spray zones 2–4 zones proposed; prewash, wash and rinse selected for the project. |
| Drive-through design speed 6–12 m/min; proposed vehicle separation 6–10 m. |
| Installed load 22–55 kW for selected spray modules; conveyor and dryers separately calculated. |
| Spray pressure and flow 30–80 bar; 100–250 L/min per active circuit; concurrent zones increase total flow. |
| Passage time and total water 1–3 min active passage; 200–750 L/vehicle planning allowance. |
| Collection and reuse 10–30 m³ initial tank allowance; 5–15 m³/h treatment sizing starting point. |
| Power supply options 380 V / 3-phase / 50 Hz baseline; 400–415 V or 60 Hz only with matched motors and controls. |
| Site planning conditions 5–40 °C assumed, frost-free; allow 800–1000 mm maintenance access. |
| Notice A tunnel enclosure does not prove conveyor transport. Except for entry and exit openings, plan side and roof containment with drainage. Open-top heavy trucks use side and underbody washing only. Enclosure does not guarantee zero water escape or zero discharge. |
| Parameter status Reference values only. Confirm the actual model, operating conditions and supply scope before ordering or publishing rated specifications. |
vide customized requirements
FAQs
1. What types of car wash equipment do you offer?
Weile offers automatic car wash systems, bus and truck wash systems, heavy-duty vehicle wash equipment, self-service car wash equipment, and related accessories. Options include gantry, enclosed tunnel, and touchless wash configurations. The right equipment depends on your vehicles, site conditions, and cleaning requirements.
2. How is the car wash equipment shipped?
Shipping is arranged according to the equipment dimensions and destination. Large car wash systems generally require sea freight, with container type and loading arrangements confirmed before shipment. Suitable spare parts may be sent by air freight or international courier. Freight costs, delivery terms, and customs responsibilities are confirmed in the quotation or contract.
3. Can the car wash system be customized to our requirements?
Yes. We can assess customization based on vehicle dimensions, site layout, cleaning zones, water supply, and local electrical requirements. Enclosed layouts and water recycling options can also be reviewed. For open-top trucks, the wash configuration focuses on sides and underbody, without overhead spraying into the cargo body. Final specifications are confirmed after technical review.
4. What is the ordering process?
Send us your vehicle details, site dimensions, destination country, and cleaning requirements. We then review the application and provide a proposed configuration and quotation. After both parties confirm the specifications, supply scope, payment terms, and delivery schedule, the order proceeds to production, inspection, and shipment. Installation and commissioning arrangements are agreed before delivery.
5. What after-sales support do you provide?
After-sales support covers operating guidance, routine maintenance guidance, remote troubleshooting, and spare-parts assistance for the supplied car wash equipment. Installation, commissioning, operator training, and on-site service can be arranged according to the agreed service scope. Warranty coverage, service charges, and travel costs are specified in the contract.
