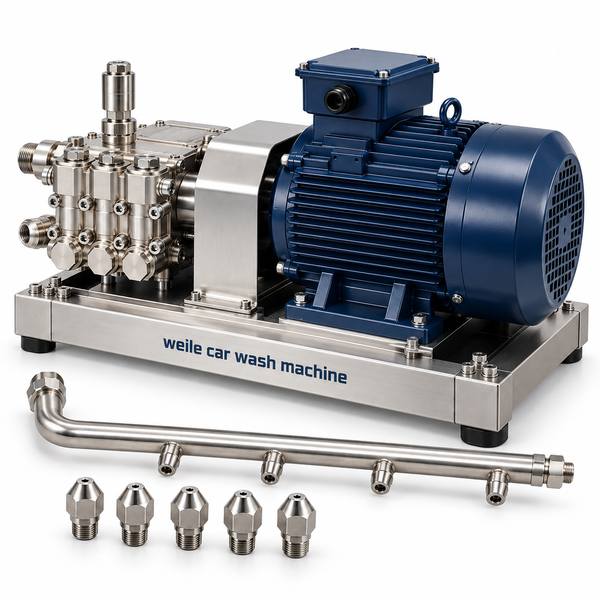

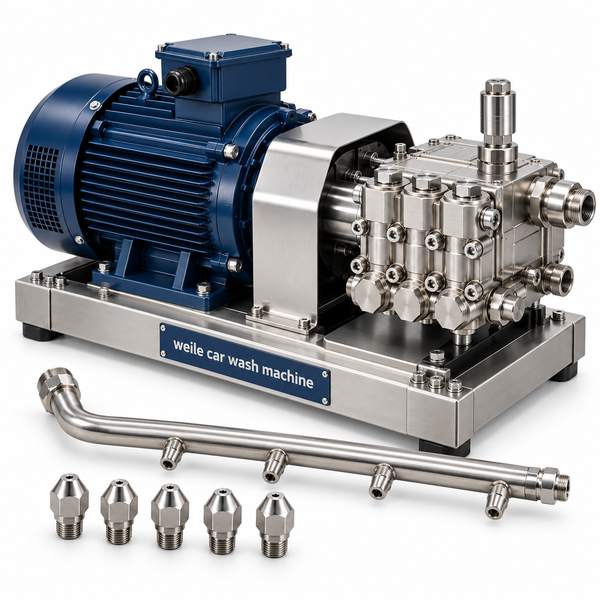

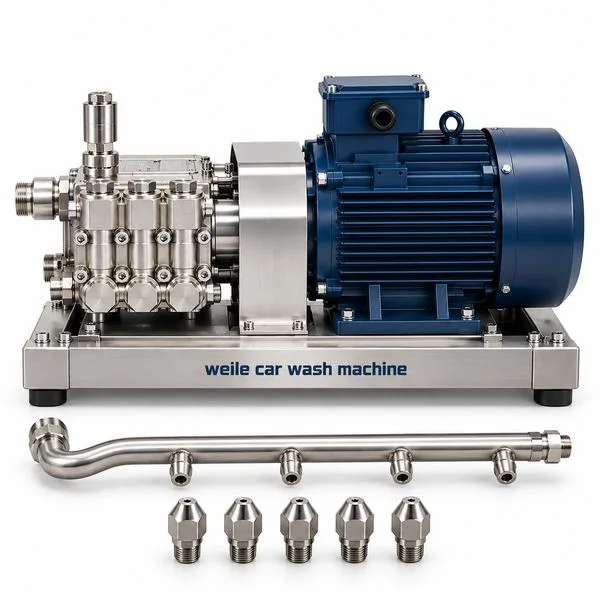

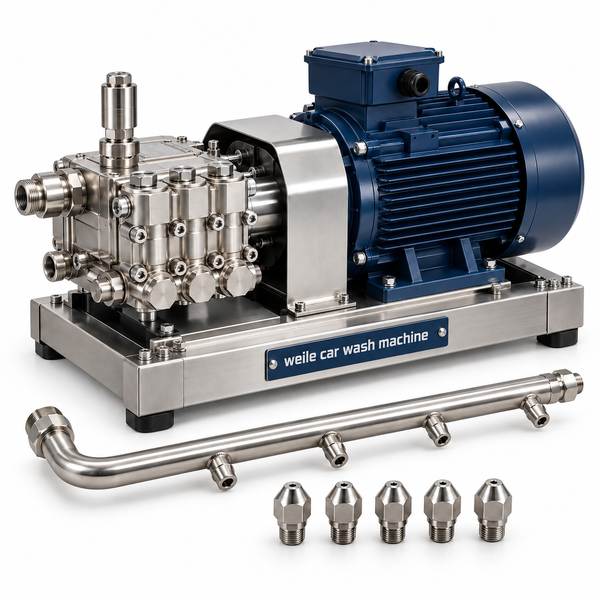

Car Wash Pumps Nozzles and Spray Arms
PRODUCT PARAMETERS
Description
| Self-service pump class 8–12 L/min at 100–120 bar; 2.2–3.0 kW motor allowance. |
| Passenger-car pump class 60–90 L/min at 70–100 bar; motor allowance 15–22 kW. |
| Fleet pump class 100–180 L/min at 40–80 bar; about 15–37 kW matched motor range. |
| Wheel-wash pump class 1000–2500 L/min at 2–5 bar; 11–30 kW combined pump allowance. |
| Fan-nozzle angle 15°, 25°, 40° or 65° candidate patterns; select by target and pressure. |
| Nozzle hydraulic example 10 nozzles × 8 L/min at a specified 60 bar = 80 L/min total at that duty. |
| Nozzle connection 1/4 or 3/8 inch BSP/NPT candidate sizes; the thread standards are not interchangeable. |
| Spray-arm geometry Side modules 3.5–4.5 m tall; 0.5–1.5 m underbody modules as layout examples. |
| Pump power check Motor kW ≥ bar × L/min ÷ (600 × efficiency); use 0.75 efficiency for preliminary sizing. |
| Power supply options 380 V / 3-phase / 50 Hz baseline; 400–415 V or 60 Hz only with matched motors and controls. |
| Notice Maximum component rating is not the recommended operating setting. A nozzle change can alter total circuit flow and coverage. Depressurize and isolate equipment before service; validate the matched circuit after replacement. |
| Parameter status Reference values only. Confirm the actual model, operating conditions and supply scope before ordering or publishing rated specifications. |
vide customized requirements
FAQs
1. What types of car wash equipment do you offer?
Weile offers automatic car wash systems, bus and truck wash systems, heavy-duty vehicle wash equipment, self-service car wash equipment, and related accessories. Options include gantry, enclosed tunnel, and touchless wash configurations. The right equipment depends on your vehicles, site conditions, and cleaning requirements.
2. How is the car wash equipment shipped?
Shipping is arranged according to the equipment dimensions and destination. Large car wash systems generally require sea freight, with container type and loading arrangements confirmed before shipment. Suitable spare parts may be sent by air freight or international courier. Freight costs, delivery terms, and customs responsibilities are confirmed in the quotation or contract.
3. Can the car wash system be customized to our requirements?
Yes. We can assess customization based on vehicle dimensions, site layout, cleaning zones, water supply, and local electrical requirements. Enclosed layouts and water recycling options can also be reviewed. For open-top trucks, the wash configuration focuses on sides and underbody, without overhead spraying into the cargo body. Final specifications are confirmed after technical review.
4. What is the ordering process?
Send us your vehicle details, site dimensions, destination country, and cleaning requirements. We then review the application and provide a proposed configuration and quotation. After both parties confirm the specifications, supply scope, payment terms, and delivery schedule, the order proceeds to production, inspection, and shipment. Installation and commissioning arrangements are agreed before delivery.
5. What after-sales support do you provide?
After-sales support covers operating guidance, routine maintenance guidance, remote troubleshooting, and spare-parts assistance for the supplied car wash equipment. Installation, commissioning, operator training, and on-site service can be arranged according to the agreed service scope. Warranty coverage, service charges, and travel costs are specified in the contract.
