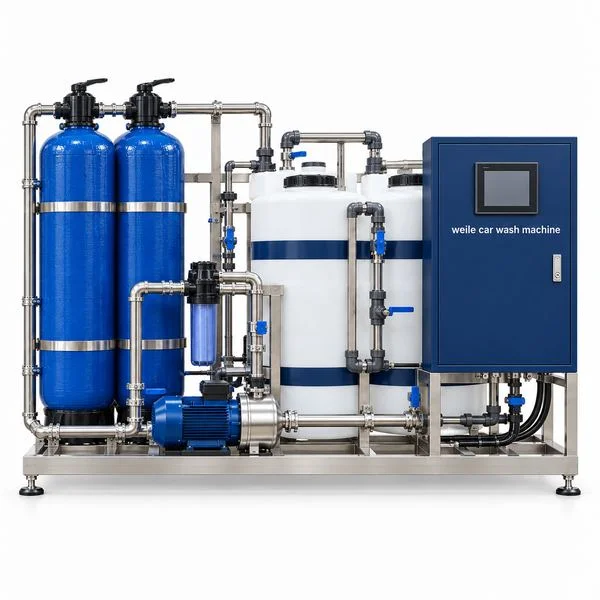

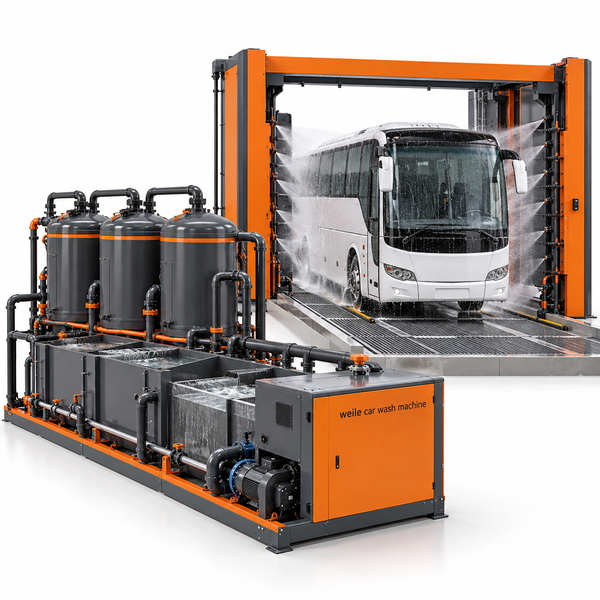

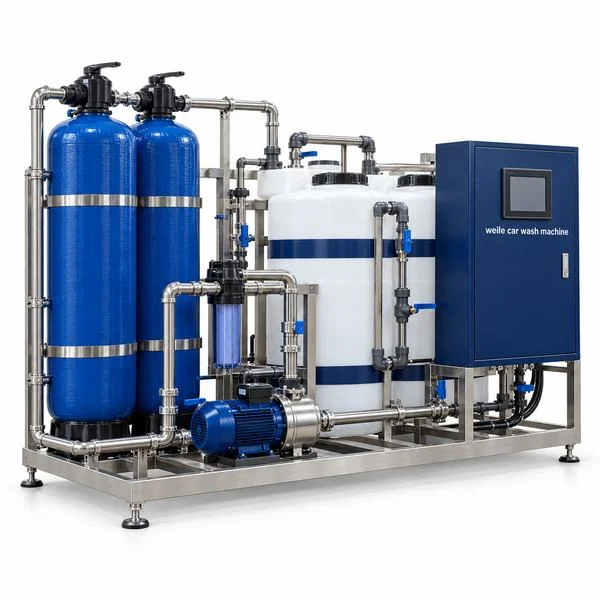

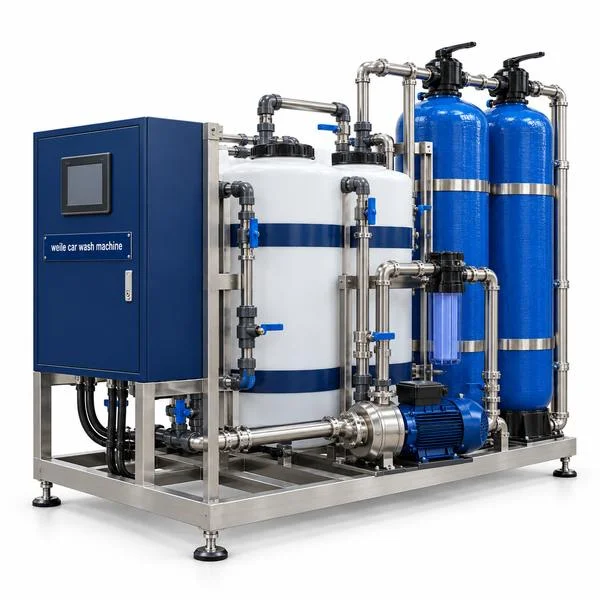

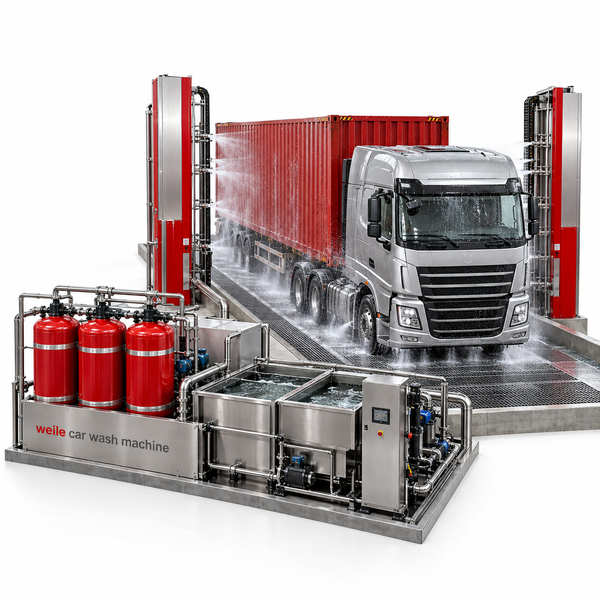

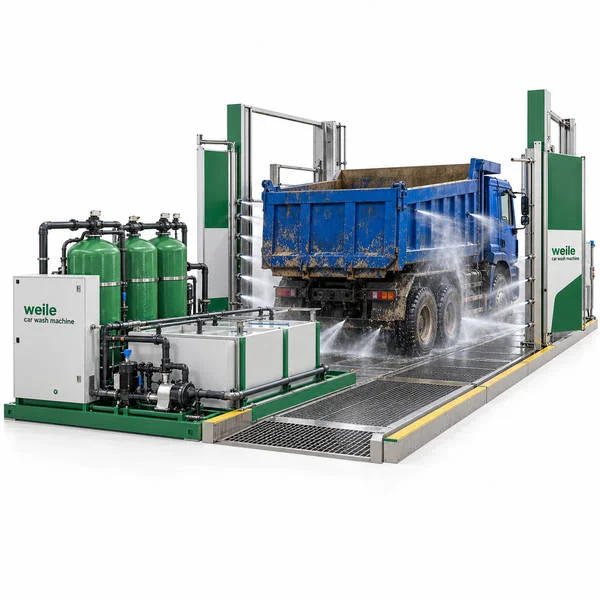

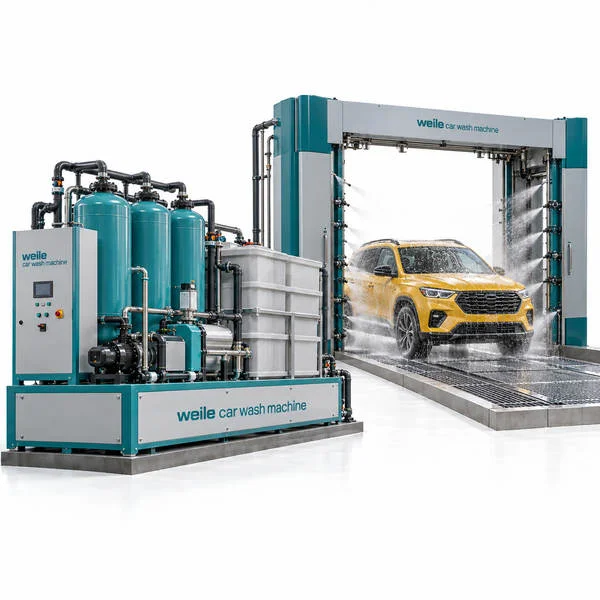

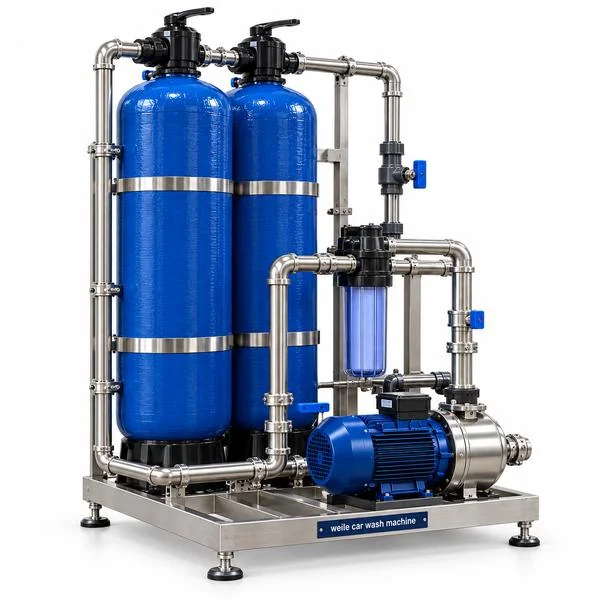

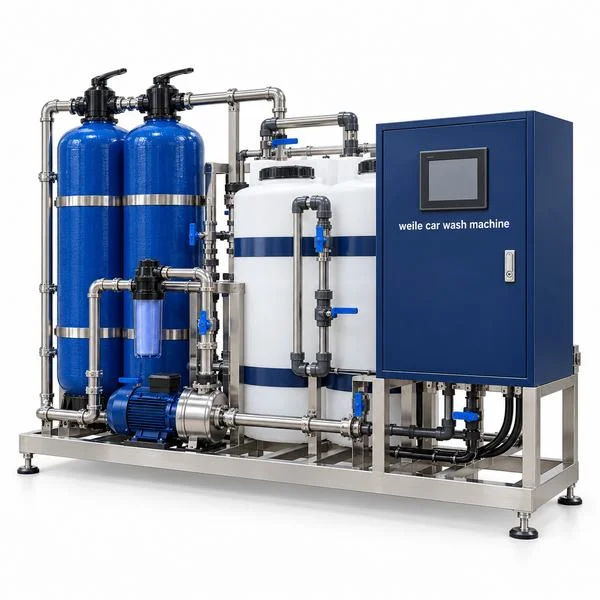

Car Wash Water Recycling Systems
PRODUCT PARAMETERS
Description
| Treatment capacities 3, 5, 8, 10 or 15 m³/h preliminary size classes; not approved product model ratings. |
| Buffer and settling 3–10 m³ for small sites; 15–30 m³ allowance for muddy fleet washes. |
| Pump/control load 3–8 m³/h physical treatment: 1.5–4 kW; 10–15 m³/h: 4–7.5 kW initial allowance. |
| Skid footprint About 1.0–2.5 × 0.8–1.5 × 1.5–2.2 m; civil tanks excluded. |
| Reuse-water pressure 2–4 bar preliminary delivery pressure; high-pressure wash pump is a separate circuit. |
| Filtration starting point 50–100 μm protective filtration proposed for ordinary reuse; final selection follows nozzle limits. |
| Reuse budget assumption 60–80% of total wash volume as an initial water-balance scenario, not a performance guarantee. |
| Makeup example 300 L wash × 70% reuse = 210 L reused + 90 L base freshwater, before backwash/losses. |
| Outlet-water acceptance No generic discharge limits stated; wash reuse criteria require water analysis and process confirmation. |
| Power supply options 380 V / 3-phase / 50 Hz baseline; 400–415 V or 60 Hz only with matched motors and controls. |
| Site planning conditions 5–40 °C assumed, frost-free; allow 800–1000 mm maintenance access. |
| Notice Water reuse is not zero discharge. Do not quote a fixed recovery rate or saving percentage without a measured water balance. Final-rinse water may need separate treatment. Outlet quality depends on inlet conditions, maintenance and the selected process. |
| Parameter status Reference values only. Confirm the actual model, operating conditions and supply scope before ordering or publishing rated specifications. |
vide customized requirements
FAQs
1. What types of car wash equipment do you offer?
Weile offers automatic car wash systems, bus and truck wash systems, heavy-duty vehicle wash equipment, self-service car wash equipment, and related accessories. Options include gantry, enclosed tunnel, and touchless wash configurations. The right equipment depends on your vehicles, site conditions, and cleaning requirements.
2. How is the car wash equipment shipped?
Shipping is arranged according to the equipment dimensions and destination. Large car wash systems generally require sea freight, with container type and loading arrangements confirmed before shipment. Suitable spare parts may be sent by air freight or international courier. Freight costs, delivery terms, and customs responsibilities are confirmed in the quotation or contract.
3. Can the car wash system be customized to our requirements?
Yes. We can assess customization based on vehicle dimensions, site layout, cleaning zones, water supply, and local electrical requirements. Enclosed layouts and water recycling options can also be reviewed. For open-top trucks, the wash configuration focuses on sides and underbody, without overhead spraying into the cargo body. Final specifications are confirmed after technical review.
4. What is the ordering process?
Send us your vehicle details, site dimensions, destination country, and cleaning requirements. We then review the application and provide a proposed configuration and quotation. After both parties confirm the specifications, supply scope, payment terms, and delivery schedule, the order proceeds to production, inspection, and shipment. Installation and commissioning arrangements are agreed before delivery.
5. What after-sales support do you provide?
After-sales support covers operating guidance, routine maintenance guidance, remote troubleshooting, and spare-parts assistance for the supplied car wash equipment. Installation, commissioning, operator training, and on-site service can be arranged according to the agreed service scope. Warranty coverage, service charges, and travel costs are specified in the contract.
