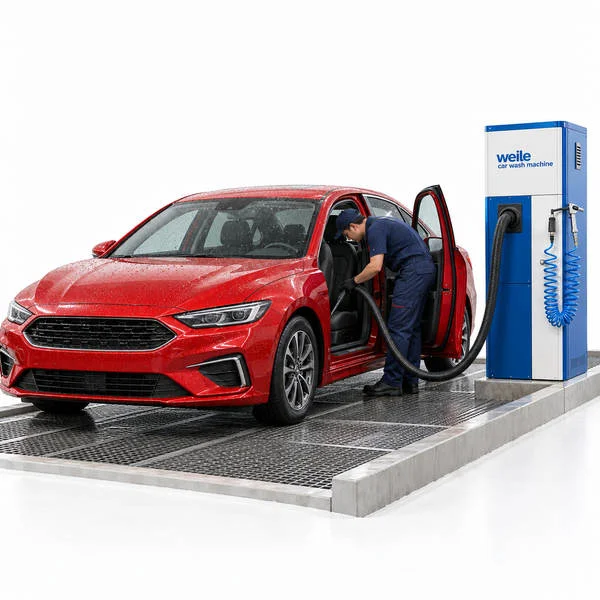

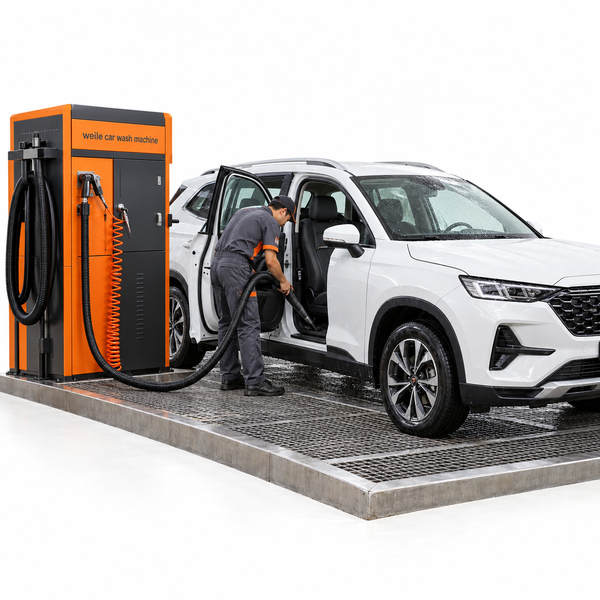

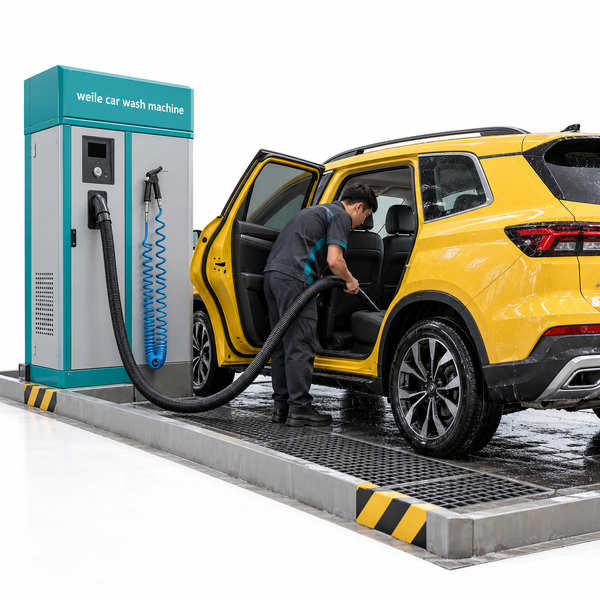

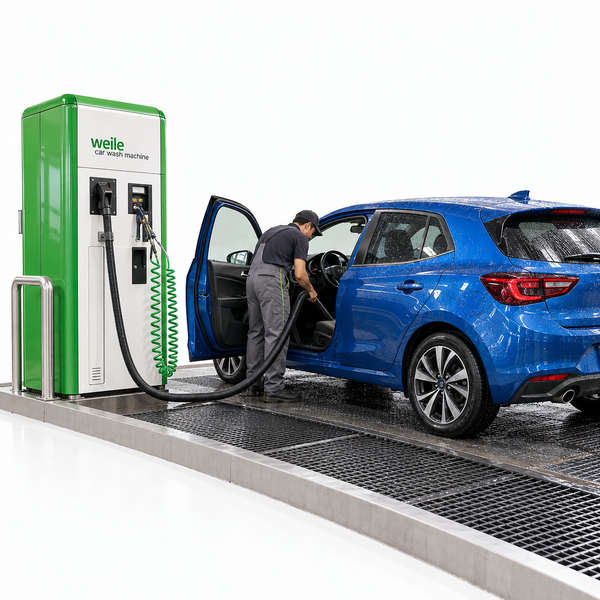

Car Wash Vacuum and Air Service Equipment
PRODUCT PARAMETERS
Description
| Dry vacuum baseline 1 station; 1.2–1.5 kW; about 20–25 kPa suction and 200–270 m³/h airflow. |
| Collection volume 30–40 L per station preliminary selection. |
| Vacuum dimensions About 600–850 × 600–850 × 1800–2200 mm including service pole where used. |
| Vacuum hose 4–6 m length; 38–50 mm internal diameter proposed. |
| Vacuum supply 220–240 V / 1-phase / 50 Hz; 60 Hz only with rated motor. |
| Separate compressor 8–10 bar; 1.5–2.2 kW; delivered air roughly 180–240 L/min at 10 bar. |
| Air receiver 50–200 L proposed; certified receiver and relief equipment required. |
| Noise benchmark Public vacuum benchmark 60–65 dB(A); compressor noise is separate and model-dependent. |
| Operating limitation Dry vacuum by default; compressor duty cycle follows the selected model, not 24 h continuous duty. |
| Site planning conditions 5–40 °C assumed, frost-free; allow 800–1000 mm maintenance access. |
| Notice A compressor does not automatically include tire inflation equipment. Do not collect liquids with a dry-only vacuum or use the unit for hazardous materials unless expressly rated. Confirm pressure limits for every connected air tool. |
| Parameter status Reference values only. Confirm the actual model, operating conditions and supply scope before ordering or publishing rated specifications. |
vide customized requirements
FAQs
1. What types of car wash equipment do you offer?
Weile offers automatic car wash systems, bus and truck wash systems, heavy-duty vehicle wash equipment, self-service car wash equipment, and related accessories. Options include gantry, enclosed tunnel, and touchless wash configurations. The right equipment depends on your vehicles, site conditions, and cleaning requirements.
2. How is the car wash equipment shipped?
Shipping is arranged according to the equipment dimensions and destination. Large car wash systems generally require sea freight, with container type and loading arrangements confirmed before shipment. Suitable spare parts may be sent by air freight or international courier. Freight costs, delivery terms, and customs responsibilities are confirmed in the quotation or contract.
3. Can the car wash system be customized to our requirements?
Yes. We can assess customization based on vehicle dimensions, site layout, cleaning zones, water supply, and local electrical requirements. Enclosed layouts and water recycling options can also be reviewed. For open-top trucks, the wash configuration focuses on sides and underbody, without overhead spraying into the cargo body. Final specifications are confirmed after technical review.
4. What is the ordering process?
Send us your vehicle details, site dimensions, destination country, and cleaning requirements. We then review the application and provide a proposed configuration and quotation. After both parties confirm the specifications, supply scope, payment terms, and delivery schedule, the order proceeds to production, inspection, and shipment. Installation and commissioning arrangements are agreed before delivery.
5. What after-sales support do you provide?
After-sales support covers operating guidance, routine maintenance guidance, remote troubleshooting, and spare-parts assistance for the supplied car wash equipment. Installation, commissioning, operator training, and on-site service can be arranged according to the agreed service scope. Warranty coverage, service charges, and travel costs are specified in the contract.
